Digital Multimeter MS8238

Roll over image to zoom in
Click to open expanded view

In stock

Product Enquiry
Category: Tags: , , ,

MS8238C Mastech

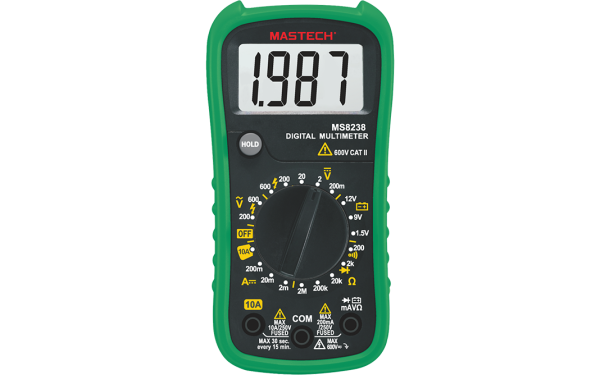

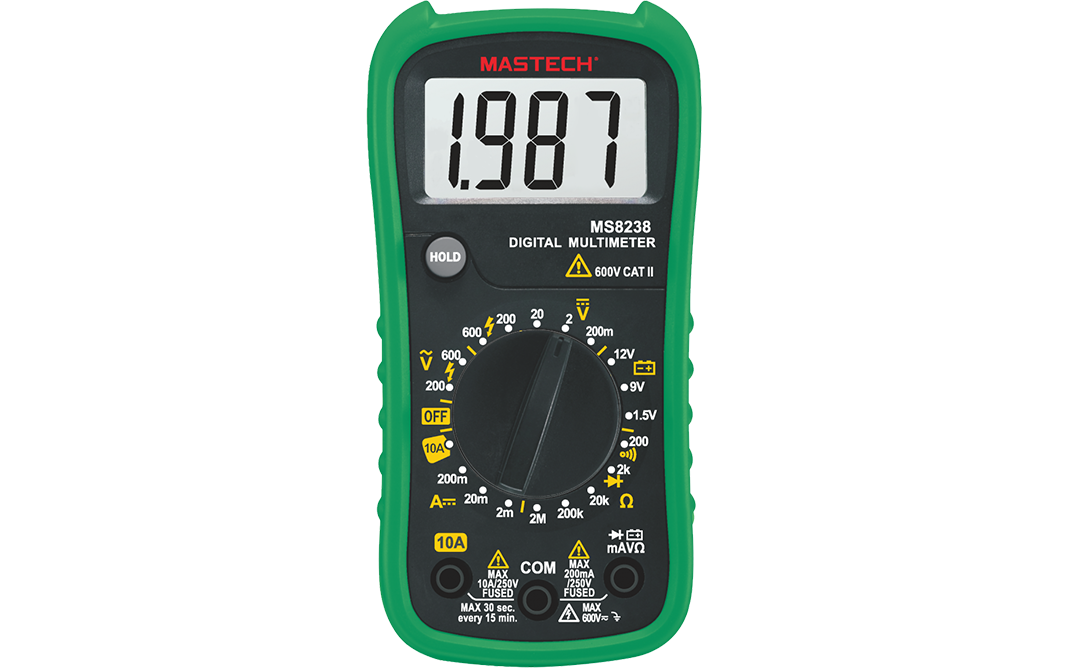

The MS8238C is a small, safe and reliable 3 1/2 digit handheld multimeter. This meter can measure AC/DC voltage, AC/DC current, resistance, diode, continuity, battery test and non-contact voltage tests. This tool is ideal for professionals and hobbyists alike.

  • Safety Rating: CAT II 600V; pollution degree: II
  • Operating Altitude: <2000m
  • Operating TEMP/Humidity:0~40℃,<80%RH
  • Storage TEMP/Humidity:-10~60℃,<70%RH, remove battery
  • Temperature coefficient: 0.1 xaccuracy/℃ (>18℃ or <28℃)
  • Max. Input between terminals and earth ground: 600V DC or AC rms
  • Fuse Protection:
  • µA/mA ranges: FF400mA H 600V
  • 10A range: FF 10A H 600V
  • Sample Rate: Approx. 3 time/sec.
  • Display: 3 ½ digit LCD display
  • Overload Indication: Display show “OL”
  • Low Battery Indication: When battery voltage drop below normal operating voltage,is shown on the display
  • Polarity Indication: Display automatically displays”-“
  • Power Supply: DC 9V, NEDA 1604 or 6F22
  • Size(LxWxH): 148×73.5x50mm
  • Weight: about 232g

    Features:

  • Display: 2000 counts
  • Autoranging
  • Auto Power Off
  • Diode: 2.7V
  • Continuity Buzzer: <30Ω
  • Data hold
  • Non-contact Voltage Detection
  • Low Battery Display

Specification Range Accuracy
DC Voltage 200mV/2V/20V/200V +-(0.5%+3)
600V +-(0.8%+3)
AC Voltage 2V/20V/200V +-(0.5%+5)
600V +-(1.0%+5)
DC Current 200µA/2mA/20mA/200mA +-(0.8%+3)
10A +-(1.0%+10)
AC Current 200µA/2mA/20mA +-(1.0%+3)
200mA +-(1.2%+3)
10A +-(1.5%+10)
Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ +-(0.8%+4)
20MΩ +-(1.0%+4)
Temperature -20℃~1000℃/ -4℉~1832℉ +-(1.0%+2)
Battery Test 12V/9V +-(0.8%+7)
1.5V +-(3.0%+5)
