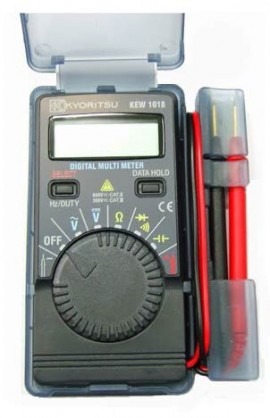

KEW1018H KYORITSU
DC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.8%rdg±5dgt (400mV/4/40/400V) ±1.0%rdg±5dgt (600V) |
---|---|
AC V | 4/40/400/600V (Input Impedance 10MΩ) ±1.3%rdg±5dgt (4/40V) ±1.6%rdg±5dgt (400/600V) |
Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±5dgt (400Ω/4/40/400kΩ/4MΩ) ±2.5%rdg±5dgt (40MΩ) |
Continuity buzzer | 400Ω (Buzzer sounds below 120Ω) |
Diode test | 4V Release Voltage:Approx. 0.4mA Test Current |
Capacitance | 4nF/40nF/400nF/4µF/40µF/200µF |
Frequency | 10/100Hz/1/10/100/200kHz |
Applicable standards | IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326-1 |
Display | 4000 counts |
Power source | LR44 (1.5V) × 2 |
Dimensions | 107(L) × 54(W) × 10(D)mm |
Weight | 70g approx. |
Included Accessories | LR44× 2 Instruction Manual 1018 (Soft Case) 1018H (Hard Case) |
