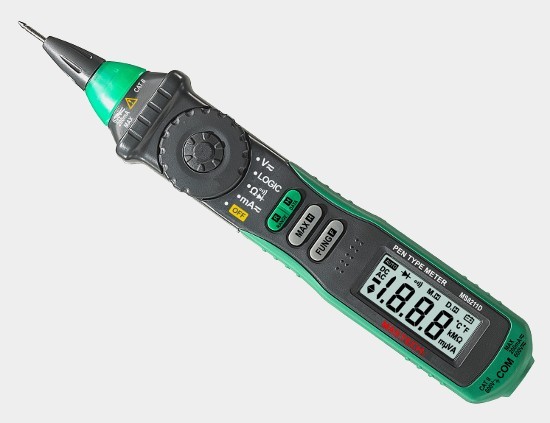

Mastech MS8211 Pen-Type Digital Multimeter in Pakistan
Product features
|
Product description
Specification:
Auto and manual range
Max. Voltage Between Terminals And Earth Ground: 600V DC or AC
Max. Reading: 1999 (3 1/2)
Sampling Time: Approx. 0.4 Second
Auto Power Off: 15 min.
DC Measurement:
DC Voltage Range: 200mV Resolution: 0.1mV Accuracy: ±(0.7% of rdg + 2 digits)
DC Voltage Range: 20V Resolution: 0.01V Accuracy: ±(0.7% of rdg + 2 digits)
DC Voltage Range: 200V Resolution: 0.1V Accuracy: ±(0.7% of rdg + 2 digits)
DC Voltage Range: 600V Resolution: 1V Accuracy: ±(0.7% of rdg + 2 digits)
Input Impedance: 10MΩ
Overload Protection:
200mV Range: 250V DC or AC rms
2V-600V Range: DC 600V or AC 600V rms
Max. Input Voltage: 600V DC
AC Measurement:
AC Voltage Range: 200mV Resolution: 0.1mV Accuracy: ±(0.8% of rdg + 3 digits
AC Voltage Range: 20V Resolution: 0.01V Accuracy: ±(0.8% of rdg + 3 digits)
AC Voltage Range: 200V Resolution: 0.1V Accuracy: ±(0.8% of rdg + 3 digits)
AC Voltage Range: 600V Resolution: 1V Accuracy: ±(1% of rdg + 3 digits)
Input Impedance: 10MΩ
Overload Protection:
200mV Range: 250V DC or AC rms
2V-600V Ranges: DC 600V or AC 600V rms.
Max. Input Voltage: 600V rms AC
Resistance:
Range: 200Ω Resolution: 0.1Ω Accuracy: ±(1.0% of rdg + 3 digits)
Range: 2kΩ Resolution: 0.001kΩ Accuracy: ±(1.0% of rdg + 1 digit)
Range: 200kΩ Resolution: 0.1kΩ Accuracy: ±(1.0% of rdg + 1 digit)
Range: 20MΩ Resolution: 0.01MΩ Accuracy: ±(1.0% of rdg + 5 digit)
Overload Protection: 250V DC or rms AC
Non-Contact AC Detecting
Voltage Sensitivity >50V, Adjustable
Frequency: 50Hz
Distance: <150mm (Vary with Sensitivities)
