MK328

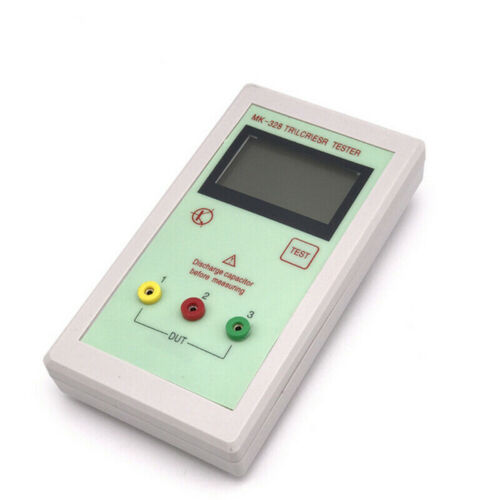

MK328 LCR ESR Tester Transistor Inductance Capacitance Resistance Meter Portable
Description:
MK-328 Transistor Tester Capacitor ESR Inductance Resistor Meter LCR NPN PNP MOS
Features:
1. Using 2015 V1.11 latest version of the software, using the M328 chip, more features. German author Karl – Hans design in hardware and software compatible with the majority of fans of easy software updates escalating.
2. Using 12864 dot matrix LCD display richer content, illustrated.
3. Use a 9V battery, with battery compartment for easy battery replacement.
4. Measure the inputs have protection circuit, false positives can reduce the damage caused by the charged capacitor meter.
5. With a standard 10-pin AVR-ISP download outlets, convenience is programmed .
6. affect the accuracy of the relevant resistance using thousandth film resistors, and the remaining one percent is also used thin-film resistors.
7. The instrument has bracket for easy use.
MK-328 Transistor Tester Capacitor ESR Inductance Resistor Meter LCR NPN PNP MOS
Features:
1. Using 2015 V1.11 latest version of the software, using the M328 chip, more features. German author Karl – Hans design in hardware and software compatible with the majority of fans of easy software updates escalating.
2. Using 12864 dot matrix LCD display richer content, illustrated.
3. Use a 9V battery, with battery compartment for easy battery replacement.
4. Measure the inputs have protection circuit, false positives can reduce the damage caused by the charged capacitor meter.
5. With a standard 10-pin AVR-ISP download outlets, convenience is programmed .
6. affect the accuracy of the relevant resistance using thousandth film resistors, and the remaining one percent is also used thin-film resistors.
7. The instrument has bracket for easy use.
Specification:
Dimensions: 83(W) x 152(height) x 34(depth)mm
Weight : Host ( without battery ) approximately 200 grams
Current: When 9V voltage, stable operating current of about 20mA

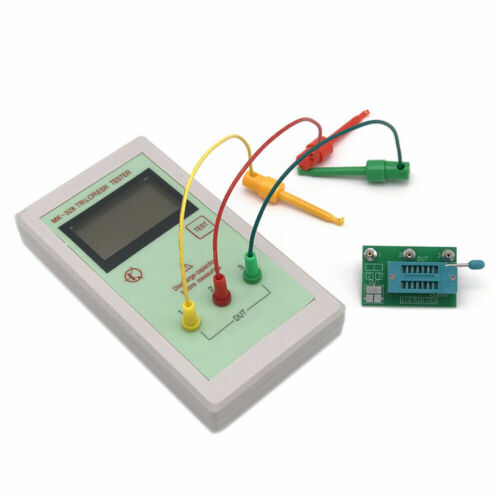

Package Included:
1 x Capacitance Resistance ESR Meter
3 x wires(red,gueen and yellow)
1 x Circuit board
