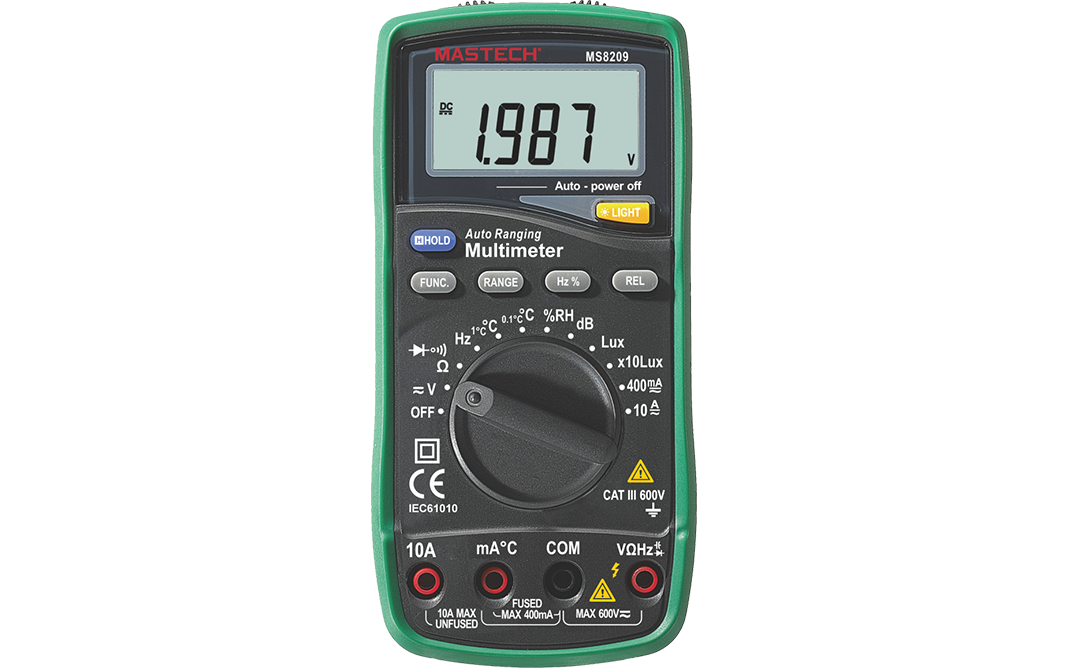

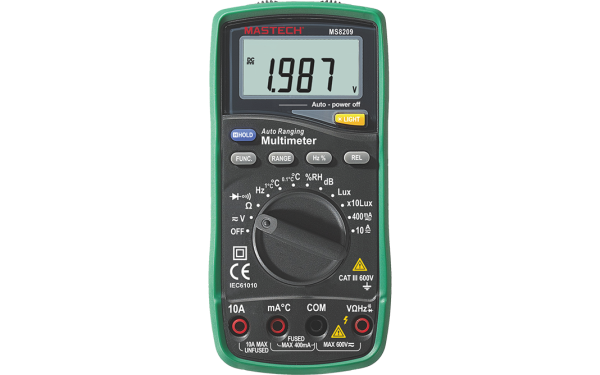

Mastech MS8209 5 in 1 Multimeter with High Accuracy

In stock

Product Enquiry

MS8209 Mastech

  • Power Supply: 1*9V 6F22 Battery
  • Product Size: 158mm*78mm*39mm / 6.2″*3.1″*1.5″
  • Product Weight: 260g/0.55lb
  • Safety Rating: CAT III 600V RoHS

Features:

  • Display: 4000 counts
  • Autoranging
  • Auto Power Off
  • Diode: 1.5V
  • Continuity Buzzer: <40Ω
  • Relative Measurement
  • Data Hold
  • Low Battery Display
  • Display Backlight

SpecificationRangeAccuracy

DC Voltage400mV/4V/40V/400V/600V+-(0.7%+2)
AC Voltage4V/40V/400V/600V+-(0.8%+3)
DC Current40mA/400mA+-(1.2%+3)
10A+-(2.0%+10)
AC Current40mA/400mA+-(1.5%+5)
10A+-(3.0%+10)
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ+-(1.2%+2)
40MΩ+-(2.0%+5)
Capacitance4nF/40nF/400nF/4µF/40µF/200µF+-(3.0%+3)
Frequency9.999Hz+-(2.0%+5)
99.99Hz/999.9Hz/9.999kHz+-(1.5%+5)
99.99kHz/199.99kHz+-(2.0%+5)
>200kHzTake it only as reference
Duty Cycle0.1%~99.9%+-3.0%
Temperature-20℃~1000℃+-(2.0%+1)
Relative Humidity30%~90%+-5.0%RH
Sound Level35dB~100dB                                                      (+-3.5%dB at 94dB,1kHz sine wave)+-3.5%
Luminosity4000Lux/40000Lux+-(5.0%+10)
