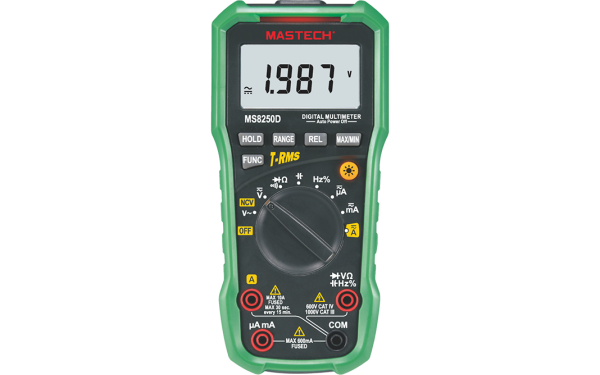

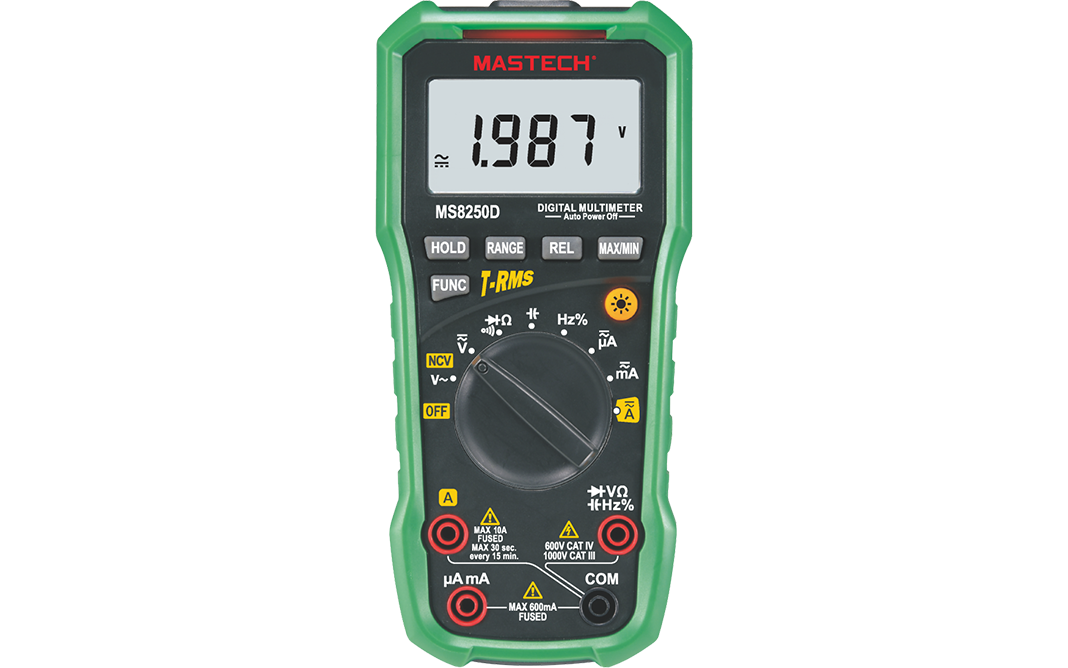

MASTECH MS8250D Digital Multimeter with USB

MS8250D Mastech

The MS8250D is a portable, hand-held yet professional meter that feature True RMS measurement display, AC/DC current, AC/DC voltage, Frequency, Capacitance, Resistance, Continuity, Duty Ratio, Diode Testing and a USB adapter for recording readings on a PC.

• Auto range and manual range.
• Full range overload protection
• Max. voltage between terminal and ground:
• CAT IV, 600V DC or AC rms.
• CAT III, 1000V DC or AC rms.
• Operational altitude: 2000 m max.
• Display: LCD
• Displayed maximum value: 6599
• Polarity Indication: Automatically display ” – “
• Over range indication: “OL ” or “-OL”
• Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for
• current measurement: approx. 1s/bar graph: 0.1s
• Unit display: functions and unit power
• Auto power off time: approx.15 min.
• Power Supply: 9V Battery
• Low Battery Indication: displays shows’
• Temperature coefficient: less than 0.1 x accuracy/℃
• Operating temperature: 0℃ to 40℃
• Storage temperature: -10℃ to 50℃
• Dimension: 180x86x52mm
• Weight: about 250g (without battery)

Features:

• Display: 6600 counts
• Auto Ranging
• Manual Ranging
• Auto Power Off
• Relative Measurement
• True Root Mean Square
• Non-Contact Voltage Detection
• Diode: 3.2V
• Continuity Buzzer: <50Ω
• MAX/MIN
• Bar Graph
• Data hold
• Low Battery Display
• Display Backlight
• USB Interface: Windows OS
