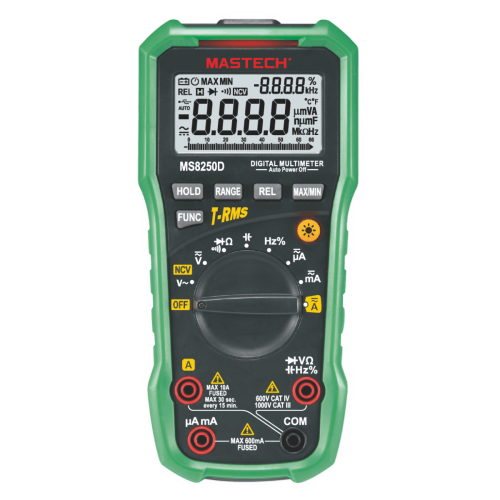

MS8250D Mastech Digital Multimeter

In stock

Product Enquiry

The MS8250D is a portable, hand-held yet professional meter that feature True RMS measurement display, AC/DC current, AC/DC voltage, Frequency, Capacitance, Resistance, Continuity, Duty Ratio, Diode Testing and a USB adapter for recording readings on a PC.

  • Auto range and manual range.
  • Full range overload protection
  • Max. voltage between terminal and ground:
  • CAT IV, 600V DC or AC rms.
  • CAT III, 1000V DC or AC rms.
  • Operational altitude: 2000 m max.
  • Display: LCD
  • Displayed maximum value: 6599
  • Polarity Indication: Automatically display ” – “
  • Over range indication: “OL ” or “-OL”
  • Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for
  • current measurement: approx. 1s/bar graph: 0.1s
  • Unit display: functions and unit power
  • Auto power off time: approx.15 min.
  • Power Supply: 9V Battery
  • Low Battery Indication: displays shows’
  • Temperature coefficient: less than 0.1 x accuracy/℃
  • Operating temperature: 0℃ to 40℃
  • Storage temperature: -10℃ to 50℃
  • Dimension: 180x86x52mm
  • Weight: about 250g (without battery)


  • Display: 6600 counts
  • Auto Ranging
  • Manual Ranging
  • Auto Power Off
  • Relative Measurement
  • True Root Mean Square
  • Non-Contact Voltage Detection
  • Diode: 3.2V
  • Continuity Buzzer: <50Ω
  • Bar Graph
  • Data hold
  • Low Battery Display
  • Display Backlight
  • USB Interface: Windows OS
