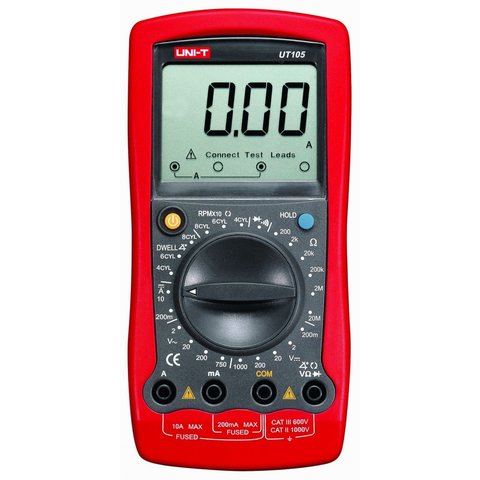

UT105 UNI-T DC/AC Digital Automotive Multimeter

Description:

UNI-T UT105 LCD Handheld DC/AC Digital Automotive Multimeter Multipurpose Meters Car Repairing Multimeter

UT105 is a manual operating handheld automotive multi-purpose meter which provide large LCD screen, fully functional display symbols and input conection prompt, totally over-load protection and unique structural design. It offers users better performance and higher safety rating.

Applications: AC/DC voltage, DC current, resistance, diode, circuitry, rotate speed and dwell angle of the car.

Specification:

• Basic Functions          Range  Accuracy
• DC Voltage     200mV/2V/20V/200V/1000V            ±(0.5%+5)
• AC Voltage     2V/20V/200V/750V   ±(0.8%+5)
• DC Current     200mA/10A    ±(0.8%+5)
• Resistance      200/2k/20k/200k/2M/20Mohm      ±(0.8%+5)

Special Functions

• Fused 10A Range                  √
• Dwell  4Cyl/6Cyl/8Cyl           ±(3%+5)
• Tach    4Cyl/6Cyl/8Cyl           ± (3%+5)
• Diode             √
• Continuity Buzzer                 √
• Data Hold                  √
• Full Icon Display                    √
• Low Battery Display             √
• Input Impedance for DC
• Voltage Measurement          Around 10MW           √
• Max. Display  1999    √

General Characteristics:

• Power 9V Battery (6F22)
• LCD Size          60 x 54mm
• Product Colour           Red Meter and Grey Holster
• Product Net Weight   352g (Including Holster)
• Product Size   179 x 88 x 39mm
• Standard Accessories Test Lead, English Manual,Hoster
