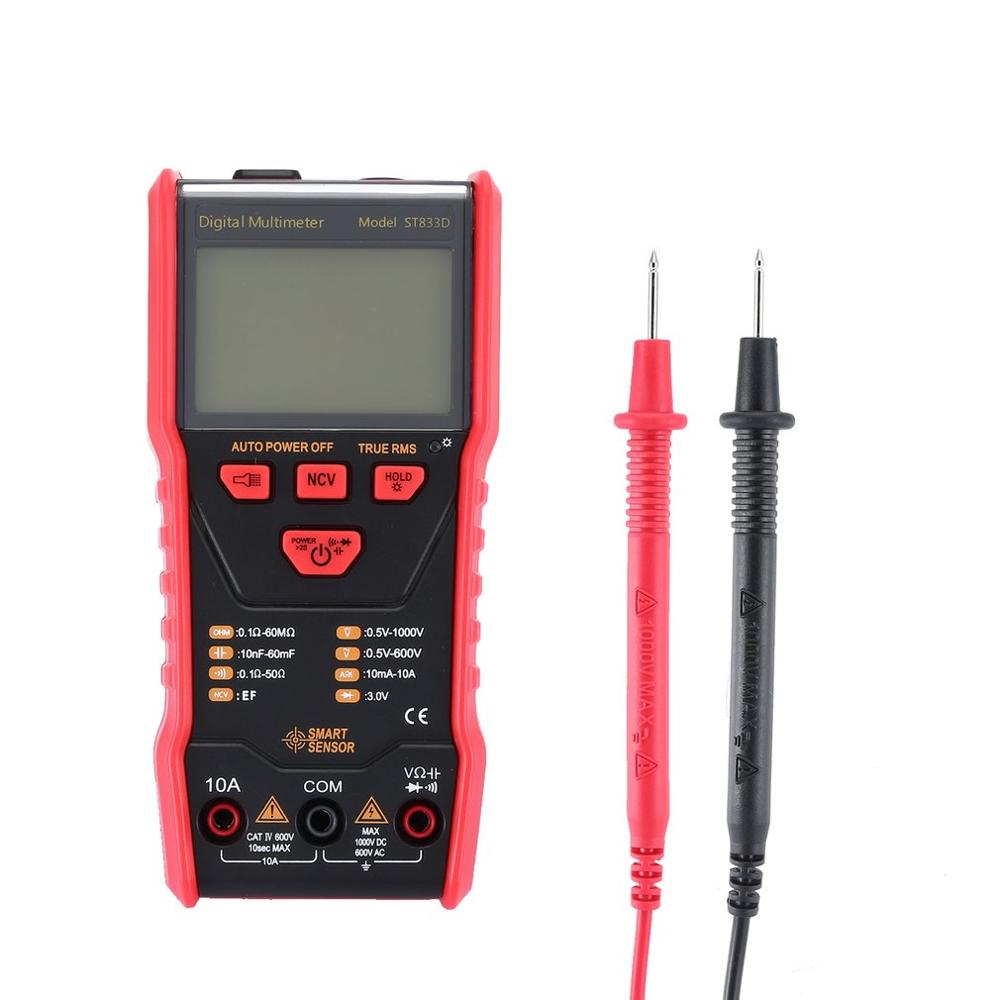

ST833D Smart Sensor

ST833D Smart Sensor

Features:
– Automatic Conversion: Automatic conversion of AC and DC, more convenient measurement.
– Flashlight Function: Suitable for any environment.
– All unit symbol.
– 5999 (3 5/6) bits automatic polarity display.
– Humanity Design: Compact Look & Silicone Shell Protection & Back Support & Data Hold.
– Clear Backlight: See the values on the screen clearly in the dark.
– Automatic Shutdown: This function can also be canceled. (Please refer to the User Manual.)
– Multifunction: AC and DC current test, AC and DC voltage test, resistance test, capacitance test, NCV test, diode on-off test.

Specifications:
Model: SMART SENSOR ST833A/ST833D/ST890D (Optional)
Material: ABS
Color: Red
Power Supply: 2 * 1.5V AAA battery (NOT included)
Display: LCD display
Automatic Shutdown Time: 15 minutes
Operating Temperature: 0~40℃ (32~104℉)
Operating Relative Humidity: ＜80%
DC Voltage Range: 6-750V±(0.8%+3)
DC Current Range: 6-10A±(2%+30)
AC Voltage Range: 6-600V±(0.5%+3)
AC Current Range: 6-10A±(2%+30)
Resistance Range: 600Ω / 600kΩ / 60MΩ±(0.8%+3)
Capacitance Range: 100nF / 100μF / 100mF±(3.5%+20)
Item Size: 14.2*7*3.5cm / 5.59*2.76*1.38in
Item Weight: 182g / 6.42oz
Package Size: 16.2*10.4*5cm / 6.38*4.09*1.97in
Package Weight: 320g / 11.2oz

Package List:
1 * Digital Multimeter
1 * Test Lead Kit
1 * User Manual (English)
