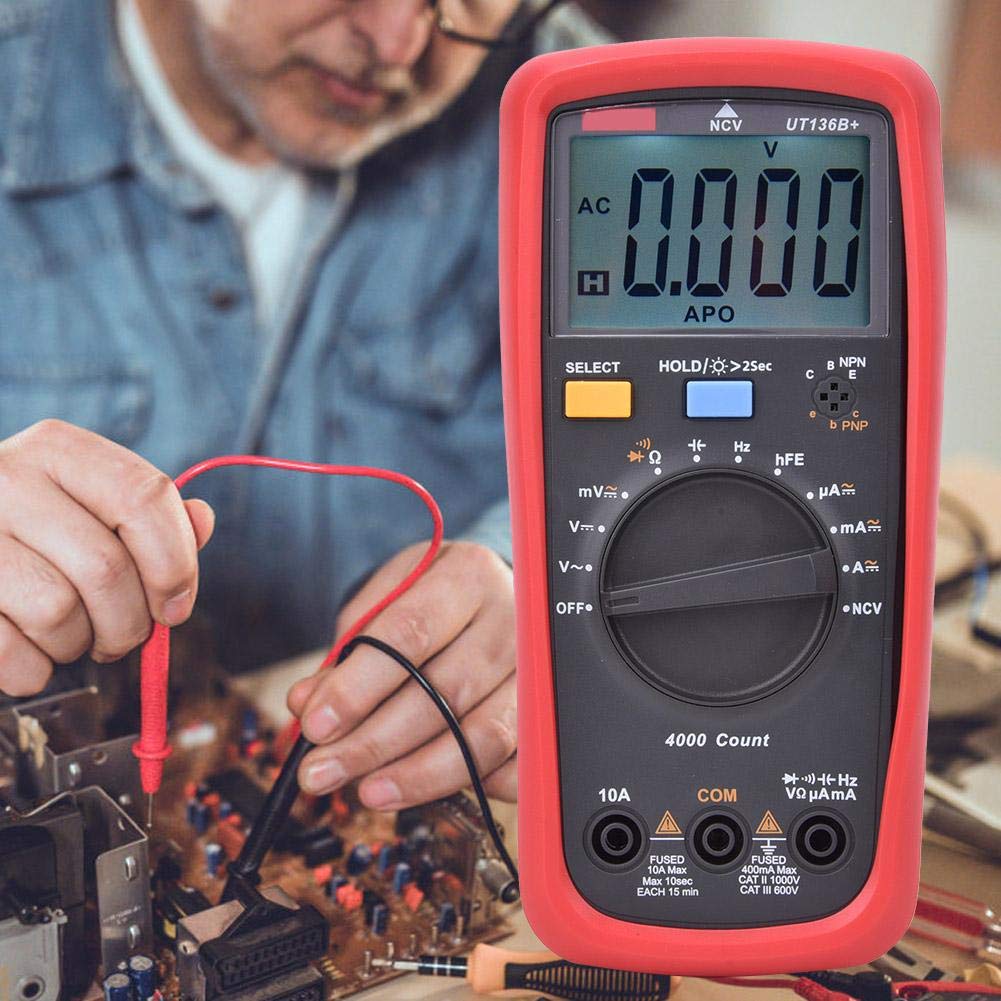

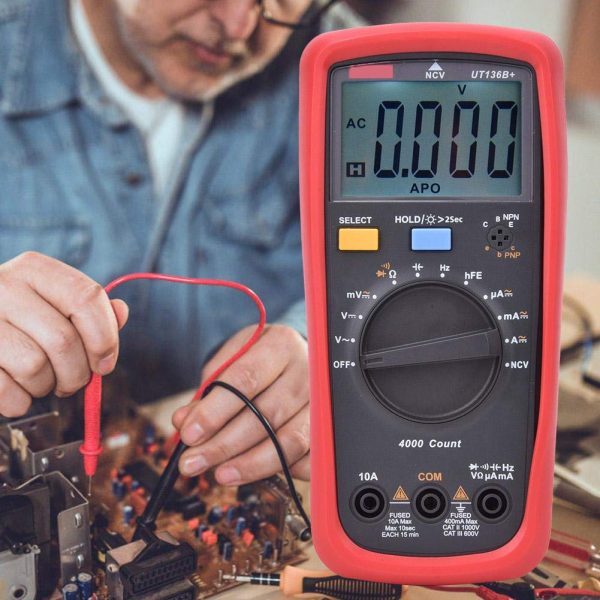

UT136B+ UNI-T
Features
1. Measures up to 1000V and 10A AC/DC voltage and current
2. Equipped with 3mm protective sleeve; 2 meters drop proof
3. Large LCD display; Overload alarm
4. Quick sampling rate, up to 4 times/s
5. Quick capacitor measurement (measures 1mF in 4 seconds)
6. Low power consumption and auto power saving function; long battery service life (>500hrs)
Tech. Spec
| Specifications | Range | UT136B+ |
| DC voltage (V) | 1000V | ±(0.7%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| DC current (A) | 10A | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(3%+5) |
| Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) |
| Features | ||
| Display count | 4000 | |
| hFE | Transistor measurement | √ |
| NCV | Non-contact voltage detection | √ |
| Diode/transistor | √ | |
| Continuity buzzer | √ | |
| Data hold/Auto power off | √ | |
| Low battery/Indication | √ | |
| LCD backlight | √ | |
| Safety rating | CAT Ⅱ 1000V, CAT Ⅲ 600V | √ |
| Drop test | 2m | √ |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 56.5mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift Box, English manual | |
