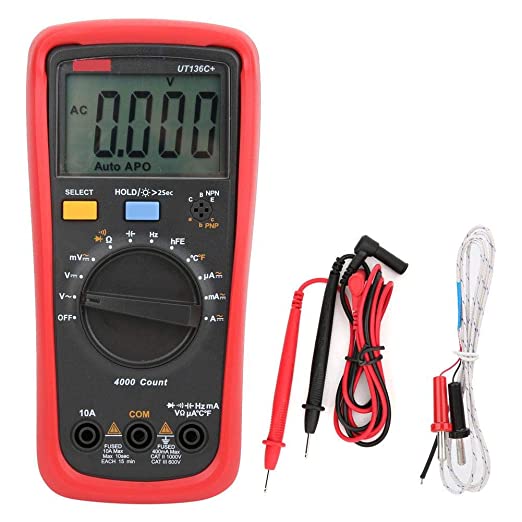

UT136C+ UNI-T Digital Multimeter

In stock

Product Enquiry


Product Description

UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
This series is suitable for civil/commercial use such as HVAC technicians and electricians.

Measures up to 1000V and 10A AC/DC voltage and current
Equipped with 3mm protective sleeve; 2 meters drop proof
Large LCD dual display; up to 4 times/s refresh rate
Full range protection: can endure up to 1kV over voltage shock; overload alarm Quick response rate
Low power consumption and auto power saving function; long battery service life (>500hrs)

Specifications Range Best Accuracy
DC voltage (V): 400mV/4V/40V/400V/1000V ±(0.5%+2)
AC voltage (V): 400mV/4V/40V/400V/1000V ±(0.7%+3)
DC current (A): 400uA/4000uA/40mA/400mA/4A/10A ±(1.0%+3)
AC current (A): 400uA/4000uA/40mA/400mA/4A/10A ±(1.5%+5)
Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)
Capacitance (F): 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±10%
Temperature (℃): -40~1000℃±4℃
Temperature (℉): -40 ~ 1832℉±5℉
Frequency: 400Hz~40MHz±(0.1%+4)
Max display:3999
Auto range: √
Diode/Transistor: √
Overload alarm:√
Low battery indication:√
Auto power off: √
LCD size: 60mm x 38mm
Protective sleeve:3.0mm√
Safety rating: CAT II 1000V
Product size:175mm x 83mm x 50mm
Package size: 197mm x 110mm x 65mm
Package Weight:456gram
