UT61B+ UNI-T

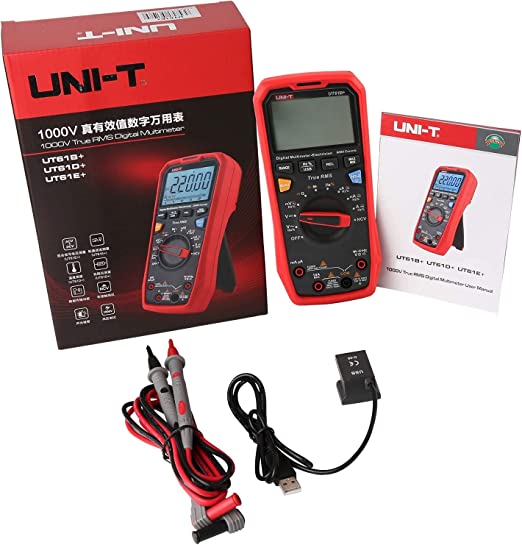

UT61B+ 1000V True RMS Digital Multimeter UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature. Features: ● True RMS ● Data hold/backlight ● Max/Min/Relative mode ● USB communication ● Input protection ● Diode/continuity test ● NCV (audible/visual alarm)
| Specifications | Range | UT61B+ |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC current (A) | 10A | ±(1.2%＋5) |
| DC current (A) | 10A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~500Hz | |
| Analog bar | 31 | |
