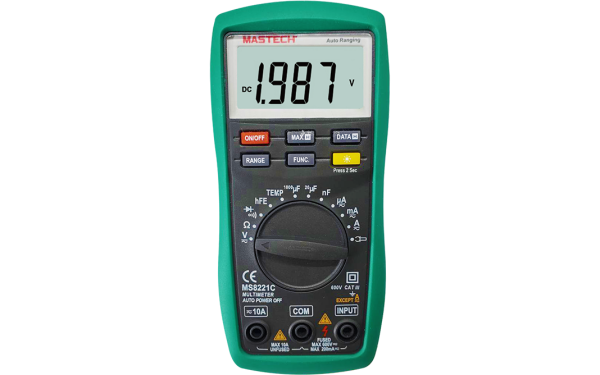

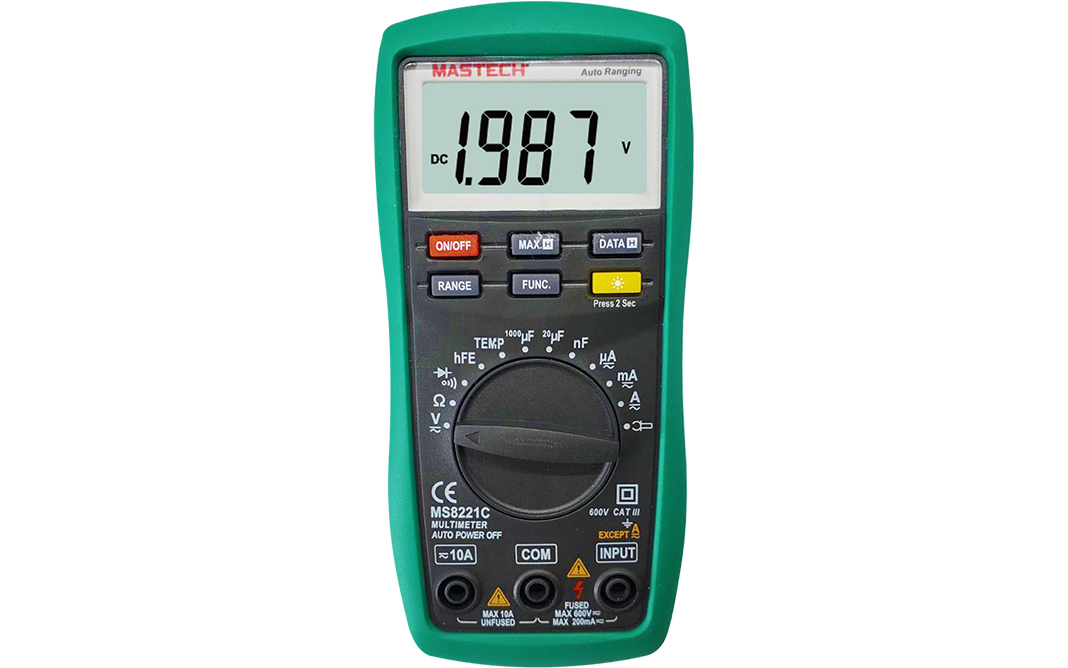

Mastech MS8221 Digital Multimeter Auto/Manual Ranging DMM

In stock

Product Enquiry
Category:

Features:
Autoranging and 2000 counts LCD Display with LCD backlight.
Tests AC/DC Voltage and Current, Resistance, Temperature and Capacitance.
diode, continuity and hFE test.
AC/DC Current Measurement with Optional Clamp.
Type-K thermocouple contact temperature measurement.
Auto ranging function.
Data hold function.
Max. value hold.
Low battery indication.
Over range indication.
Auto power off.

Specifications:
DC Voltage: 200mV/2V/20V/200V/600V ±(0.7% of rdg + 2 digits)
AC Voltage: 200mV/2V/20V/200V±(0.8% of rdg + 3 digits), 600V±(1.0% of rdg + 3 digits)
DC Current: 200uA/2000uA/20mA/200mA ±(1.2% of rdg + 3 digits), 2A/10A±(2.0% of rdg + 10 digits)
AC Current: 200uA/2000uA/20mA/200mA ±(1.5% of rdg + 5 digits), 2A/10A±(3.0% of rdg + 10 digits)
DC Current (with clamp, optional): 200A/2000A (0.1mV/0.1A) ± 1.2%
AC Current (with clamp, optional): 200A/2000A (0.1mV/0.1A) ± 1.5%
Resistance: 200/2K/20K/200K/2M? ± 1.0%, 20M? ± 2.0%
Temperature: -20 oC – 1000  oC ± 3.0%, 0 oF- 1800 oF ± 3.0%
Capacitance: 20nF/200nF/2?F/20?F/200?F/1000?F ± 4.0%

General Characteristics:
Dimensions: 158 * 74 * 31mm
Power supply: 3 * 1.5V (AAA) battery (not included)
Package Size: 21 * 18.5 * 5.5cm / 8.3 * 7.2 * 2.2in
Package Weight: 456g / 1lb

Package List:
1 * MASTECH MS8221C Digital Multimeter
1 * Pair Test Lead
1 * Multi-function Socket
1 * Thermocouple
1 * English user manual
