UT55 UNI-T – Digital multimeter

In stock

Product Enquiry
Category:

UT55 UNI-T

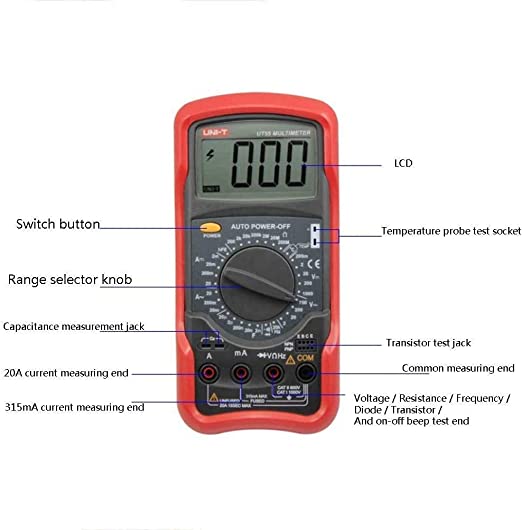

UNI-T UT55 has a strong case for protection so you don’t need to be afraid of dropping it. UT55 has a large display screen which is suitable for your eyes. UT50 series are manual range digital multimeter. Large display,multi purpose use, AC DC volts,AC/DC amperes, resistance and buzzer functions are in-built.

Specifications:

Model: UT55
DC Voltage (V): 200mV/2V/20V/200V/1000V ±(0.5%+1)
DC Current (A): 2mA/20mA/200mA/20A ±(0.8%+1)
AC Voltage (V): 2V/20V/200V/750V ±(0.8%+3)
AC Current (A): 20mA/200mA/20A ±(1%+3)
Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+1)
Capacitance (F): 2nF/20nF/200nF/2?F/20?F ±(4%+3)
Frequency (Hz): 2kHz/20kHz ±(1.5%+5)
Temperature (°C): -20℃~1000℃ ±(1%+3)
General Characteristic:
Product Net Weight: 580g (including holster)
Product Size: 190mm * 88mm * 34mm
Power: 9V Battery (6F22)(included)
LCD Size: 65mm * 33mm
Product Colour: Red and Grey
Package Size: 24.1 * 17.6 * 7cm / 9.5 * 7 * 2.7in
Package Weight: 803g / 1.8lb

Package includes:

1x  Digital Multimeter
