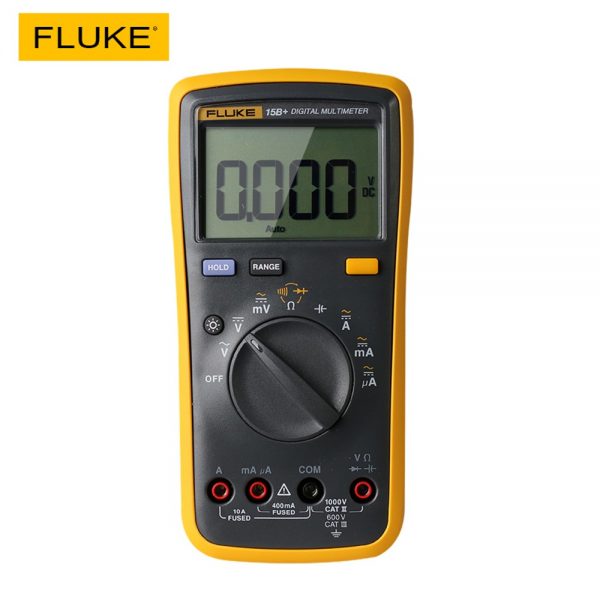

Features:- 600 V Cat III safety rating
- 50% bigger display with bright white backlight
- Voltage, resistance, continuity, capacitance
- Input terminal for ac and dc current measurements to 10 A current
- Diode test, data hold
Accuracy SpecificationsAccuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits). Function | Range | Resolution | Accuracy | AC volts
(40 Hz to 500Hz)1 | 4.000 V
40.00 V
400.0 V
1000 V | 0.001 V
0.01 V
0.1 V
1 V | 1.0 % + 3 | DC volts | 4.000 V
40.00 V
400.0 V
1000 V | 0.001 V
0.01 V
0.1 V
1 V | 0.5 % + 3 | AC millivolts | 400.0 mV | 0.1 mV | 3.0 % + 3 | DC millivolts | 400.0 mV | 0.1 mV | 1.0 % + 10 | Diode test2 | 2.000 V | 0.001 V | 10% | Resistance
(Ohms) | 400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ | 0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ | 0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3 | Capacitance3 | 40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
1000 μF | 0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF | 2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5 | AC current μA
(40 Hz to 400 Hz) | 400.0 μA
4000 μA | 0.1 μA
1 μA | 1.5 % + 3 | AC current mA
(40 Hz to 400 Hz) | 40.00 mA
400.0 mA | 0.01 mA
0.1 mA | 1.5 % + 3 | AC current A
(40 Hz to 400 Hz) | 4.000 A
10.00 A | 0.001 A
0.01 A | 1.5 % + 3 | DC current μA | 400.0 μA
4000 μA | 0.1 μA
1 μA | 1.5 % + 3 | DC current mA | 40.00 mA
400.0 mA | 0.01 mA
0.1 mA | 1.5 % + 3 | DC current A | 4.000 A
10.00 A | 0.001 A
0.01 A | 1.5 % + 3 | Backlight | Yes | 1All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). |
Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio | AC volts | 1000 V 1 | >10 MΩ <100 pF | >60 dB at dc,
50 Hz or 60 Hz | – | AC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | – | DC volts | 1000 V 1 | >10 MΩ <100 pF | >100 dB at dc,
50 Hz or 60 Hz | >60 dB at 50 Hz or 60 Hz | DC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | – | 1 106 V Hz Max |
General Specifications | Maximum voltage between any terminal and earth ground | 1000 V | Display (LCD) | 4000 counts, updates 3/sec | Battery type | 2 AA, NEDA 15A, IEC LR6 | Battery life | 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.) | Temperature | Operating | 0 °C to 40 °C | Storage | -30 °C to 60 °C | Relative Humidity | Operating humidity | Non-condensing (<10°C)
≤90% RH at 10 °C to 30 °C;
≤75% RH at 30 °C to 40 °C | 40 MΩ range
≤80% RH at 10 °C to 30 °C;
≤70% RH at 30 °C to 40 °C |
|
|
