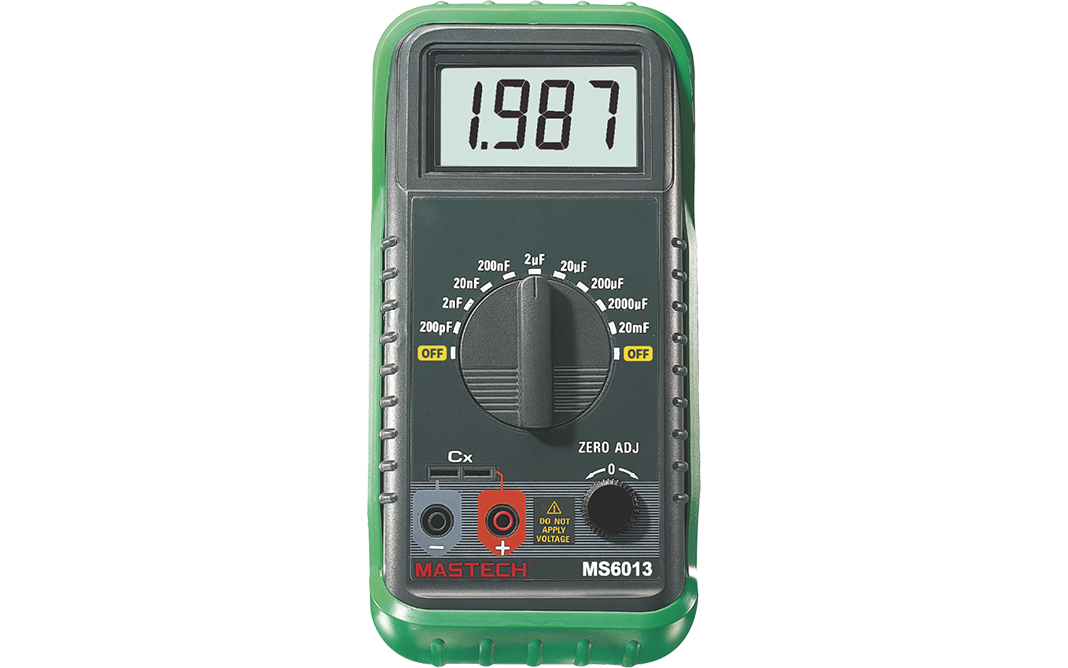

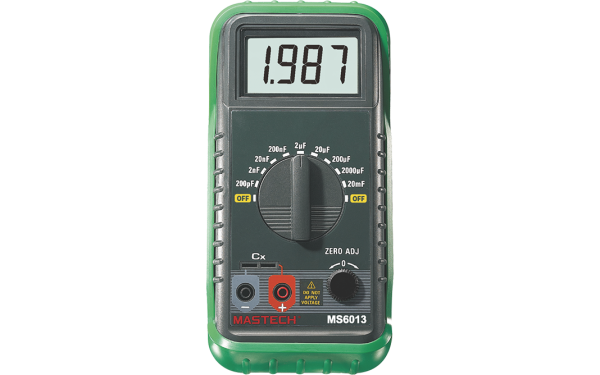

Digital LCR Meter MS6013

In stock

Product Enquiry

MS6013 Mastech

This Digital Capacitance Meter gives a direct reading of capacitance on a 3 1/2 digits LCD display.Nine ranges give precision readings from 0.1pF to 20mF, which includes virtually all capacitors used in electronic engineering laboratory, production, service shops and schools, its battery operation, light weight, and small size make it a truly portable instrument.

Specifications Range Resolution Accuracy
Capacitance 200pF 0.1pF ±(0.5%+1)
2nF/20nF/200nF 1pF/10pF/100pF ±(0.5%+1)
2μF/20μF/200μF 1nF/0.01μF/0.1μF ±(0.5%+1)
2000μF 1μF ±(1.0%+1)
20mF 10μF ±(2.0%+2)

Features :
● Display 2000 counts
● Zero Adjustment approx. ± 20pF
● Input Jacks
● High Accuracy in Measuring
● Low Battery Display
● Power Supply :  1×9V 6F22 Battery
● Product Size :  189mm×91mm×31.5mm/7.4″×3.6″×1.2″
● Product Weight :  240g/0.52lb
● Certification :  CE / ETL / RoHS

Assessories :
● Test lead
● Holster
● Battery and User’s manual
