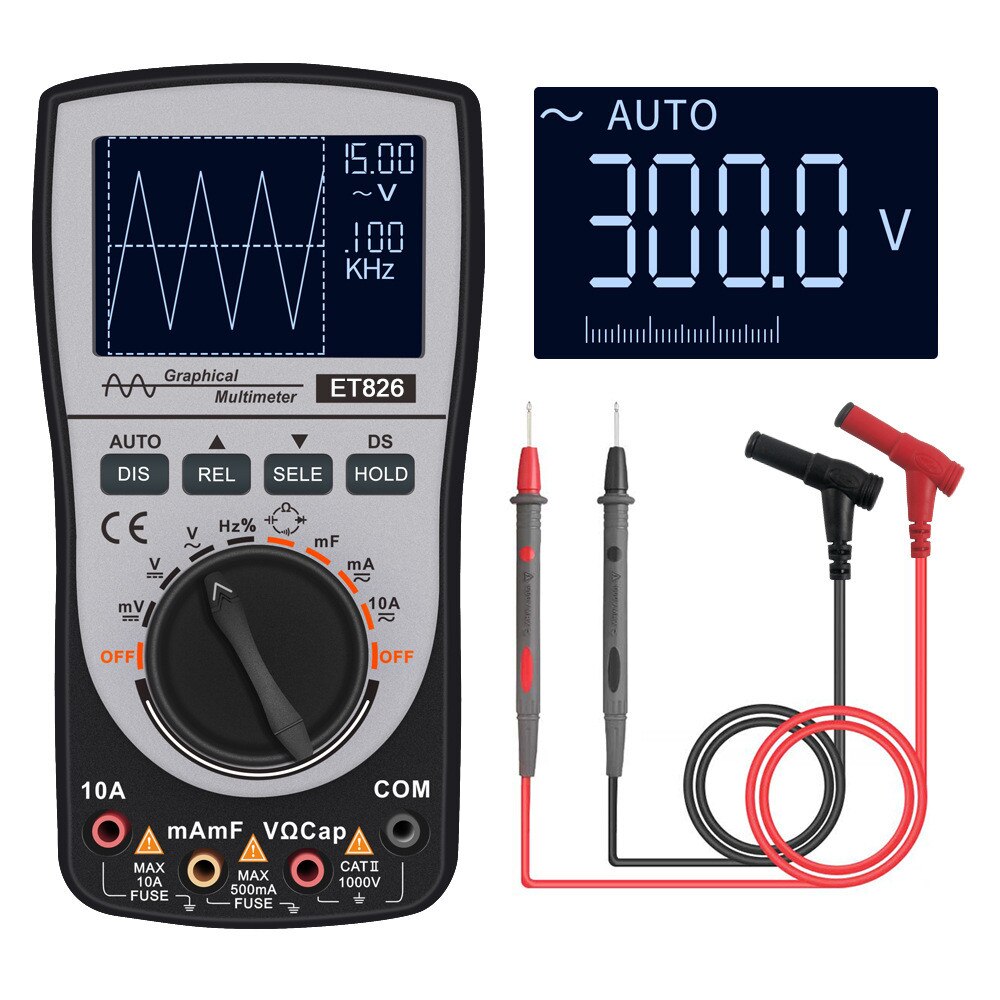

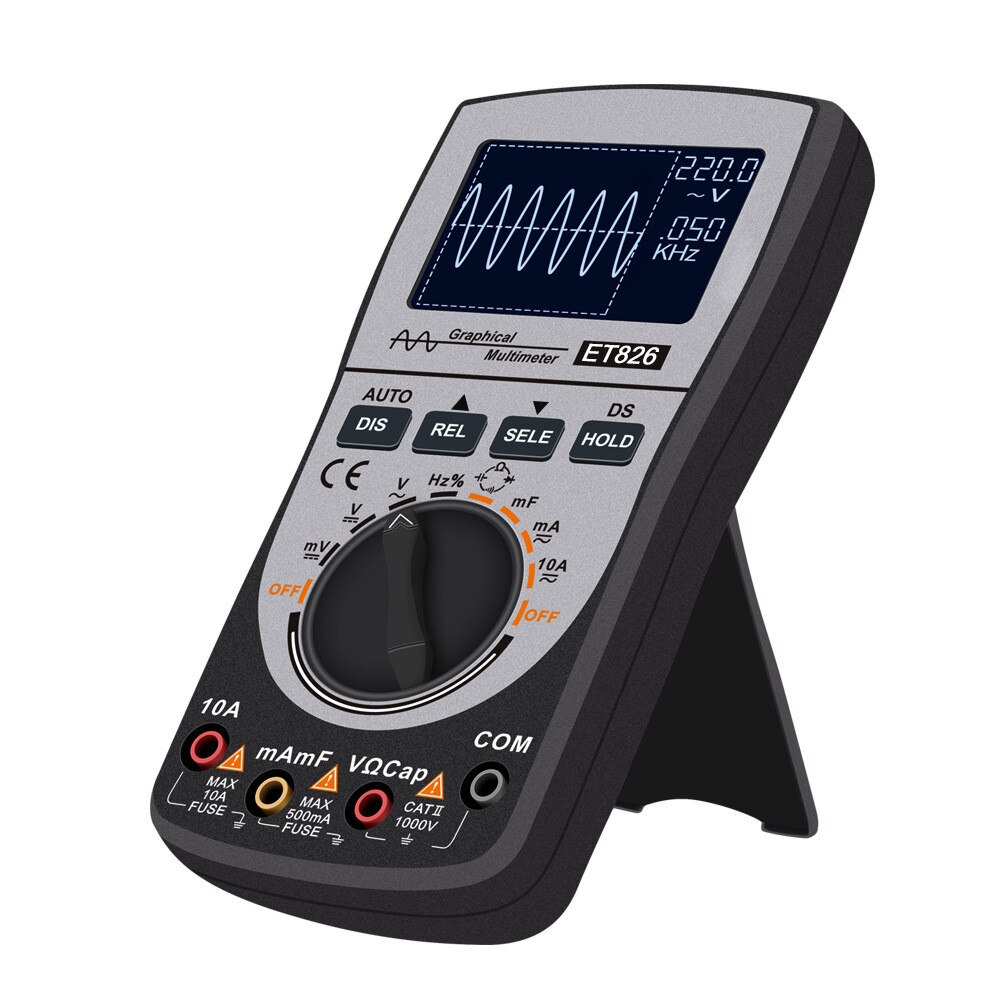

Et826 Digital Oscilloscope Multimeter

ET826 Multimeter Waveform Intelligent Multimeter in Pakistan 2021

Characteristics:

Digital Multimeter with 200K high-speed A / D sampling, 4000 count auto-ranging, one-button switch to display graphical waveform during measurement. High reliability thanks to panel calibration technology and memory calibration, avoiding the need for adjustment with the potentiometer.

Stores 100 data sets and 10 waveforms independently.

Capable of saving waveform and data during measurement, easy to view and analyze.

One-button waveform automatic capture realization, easy to use to learn and operate.

Viewing historical data and real-time measurement on the same screen with particular log reading mode for easy comparison.

AC voltage bandwidth up to 20KHz.

Innovative design for one-key “silent mode”, quiet in the domain.

Effectively remove lead resistance, distributed capacitance or interference signals with relative value measurement (cleanliness).

With DC / AC voltage / current, resistance, capacitance / mF (Large capacitance), duty cycle / frequency, diode / continuity test.

Frequency measurement with automatic switching range of 5Hz ~ 5MHz and the maximum input of 380Vac.

10A AC and DC current measurement with voltage error protection.

0.1nf-100uf capacitance double gear design gear position: convenient for small capacitors to measure quickly.

10mf gear position: High capacitance and high precision are guaranteed.

Extend battery life with automatic shut-off feature.

Specs:

• Material: ABS
• Main color: gray
• Display: LCD screen, 128 * 64 matrix graphics, 4000 counts
• LCD size: 60 * 40mm / 2.4 * 1.6in
• Backlight: white power: 3 * 1.5V AA battery (not included)
• Input resistance: 10 MΩ auto sleep mode: Yes (meter automatically wakes up in 15 minutes without any button)
• Power consumption: about 40mA
• Storage capacity: DMM data: 100 groups, waveform record: 10 groups
• Operation environment: 0 ℃ ~ + 40 ℃; <75% RH storage environment: -10 ℃ ~ + 60 ℃; <90% RH Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in Item weight: 190g / 6.7oz

• Package size e: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
• Package Weight: 360g / 12.7ounce
• Digital storage scope: analog bandwidth: ACV / DCV / ACA / DCA 20KHz
• Maximum real-time sampling rate: 200ksps
• Digital Multimeter: DC voltage: Range: 400mV / 4V / 40V / 400V / 1000V
• Resolution: 0.1mV / 1mV / 10mV / 100mV / 1V
• Uncertainty: 400mV: ± (0.75% rdg + 10dgt) 4V / 40V / 400V / 1000V: ± (1.5% rdg + 10dgt) / 1000V
• AC voltage: Range: 400mV / 4V / 40V / 400V / 750V
• Resolution: 0.1mV / 1mV / 10mV / 100mV / 1V
• Uncertainty: 400mV: 50Hz ~ 1KHz / ± (2.0% rdg + 10dgt) no more than 1KHz 4V / 40V / 400V: 50Hz ~ 400Hz / ± (1.0% rdg + 10dgt) 400Hz ~ 20KHz / ± (5.0% rdg + 10dgt ) 750V: 50Hz ~ 1KHz / ± (1.5% rdg + 10dgt) no more than 1KHz
• Continuous current: Range: 40mA / 400mA, 4A / 10A Resolution: 40mA / 400mA: 10μA / 100μA 4A / 10A: 1mA / 10mA
• Doubts: ± (1.2% rdg + 10DGT) AC current: Range: 40mA / 400mA, 4a / 10A
• Resolution: 40mA / 400mA: 10μA / 100μA 4A / 10A: 1mA / 10mA doubts: ± (1.5% rdg + 10dgt) 50Hz ~ 5KHz no more than 5KHz
• Resistance: Range: 400Ω / 4K Ω / 40K Ω / 400K Ω / 4M Ω / 40MΩ
• Resolution: 0.1 Ω / 1Ω / 10Ω / 100Ω / 1K Ω / 10KΩ
• Uncertainty: ± (1.0% rdg + 5dgt) ± (3.0% rdg + 5dgt) / 40MΩ
• Capacitance: Range: 51.2nF / 512nF / 5.12 μF / 51.2 μF / 100 μF / 10mF
• Resolution: 51.2nF / 512nF / 5.12μF / 51.2μF / 100μF: 10pF / 100pF / 1nF / 10nF / 100nF 10mF: 1μF
• Uncertainty: 51 2nF / 512nF / 5.12μF / 51.2μF / 100μF: ± (3.0% rdg + 10dgt) 10mF: ± (5.0% rdg + 15dgt)
• Frequency: Range: 5Hz ~ 5MHz
• Resolution: 1Hz doubts: ± (1.0% rdg + 5dgt), (signal amplitude not less than 2Vp-p, ACV, max 380V) Diode test: open circuit voltage is about 1.5V, the maximum current test is about 1.5 ma
• Continuity test: The reference resistance is approximately 50 Ω fuse specification: 500mA / 250V, 10a / 250V
