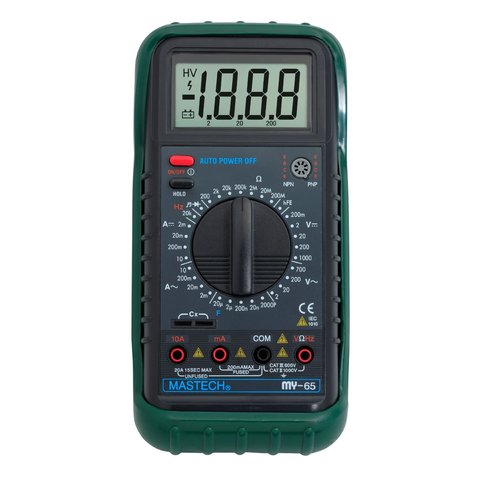

    MY65 Mastech

    Product Weight: 366g/0.8lb
    Safety Rating: ETL CAT.II 1000V / CAT.III 600V  RoHS
    Power Supply:  1*9V 6F22 Battery
    Product Size: 195mm*95mm*55mm / 7.67″*3.74″*2.16″

    Features:

    • Display: 20000 counts
    • Auto Power Off
    • Transistor hFE: 0~1000
    • Diode: 2.8V
    • Continuity Buzzer: <60Ω
    • Data Hold
    • Low Battery Display

    SpecificationRangeAccuracy
    DC Voltage200mV+-(0.05%+3)
    2V/20V/200V+-(0.1%+3)
    1000V+-(0.15%+3)
    AC Voltage2V/20V/200V+-(1.0%+10)
    750V+-(1.2%+15)
    DC Current2mA/20mA+-(0.5%+5)
    200mA+-(0.8%+5)
    10A+-(2.0%+10)
    AC Current2mA+-(0.8%+10)
    20mA+-(0.8%+10)
    200mA+-(1.2%+10)
    10A+-(2.5%+10)
    Resistance200Ω+-(0.5%+10)
    2KΩ+-(0.3%+3)
    20KΩ/200KΩ/2MΩ+-(0.3%+1)
    20MΩ+-(0.5%+1)
    200MΩ+-(5.0%+10)
    Capacitance2000pF/20nF/200nF/2µF/20µF+-(4.0%+20)
